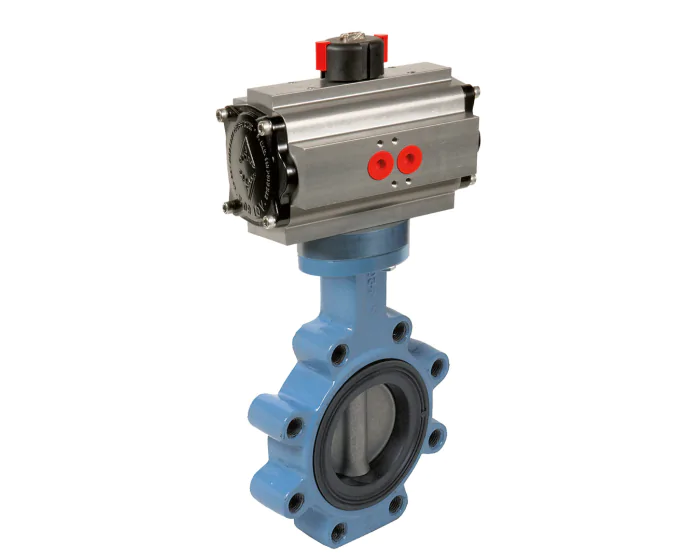

The 1161 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN150. It is a lug type.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Seat | NBR |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category I |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 Double acting | 261353015100 | S1003560 |
€212.97
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 Spring return | 261353016101 | S1003561 |
€243.47
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 261354015100 | S1003562 |
€212.97
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 261354016101 | S1003563 |
€245.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 261355015101 | S1003564 |
€253.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 261355016102 | S1003565 |
€297.74
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 261356015101 | S1003566 |
€357.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 261356016102 | S1003567 |
€261.41
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 261357015102 | S1003568 |
€329.34
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 261357016103 | S1003569 |
€351.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 261358015102 | S1003570 |
€364.81
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 261358016104 | S1003571 |
€452.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 261359015103 | S1003572 |
€445.21
(excl. btw)
|
add to cart |
